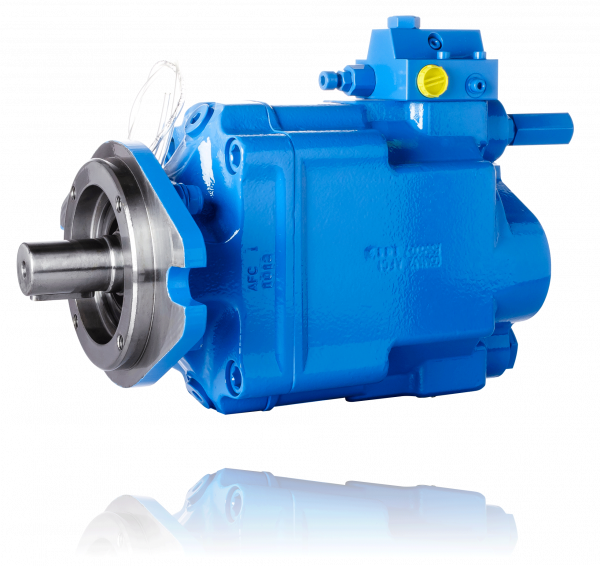

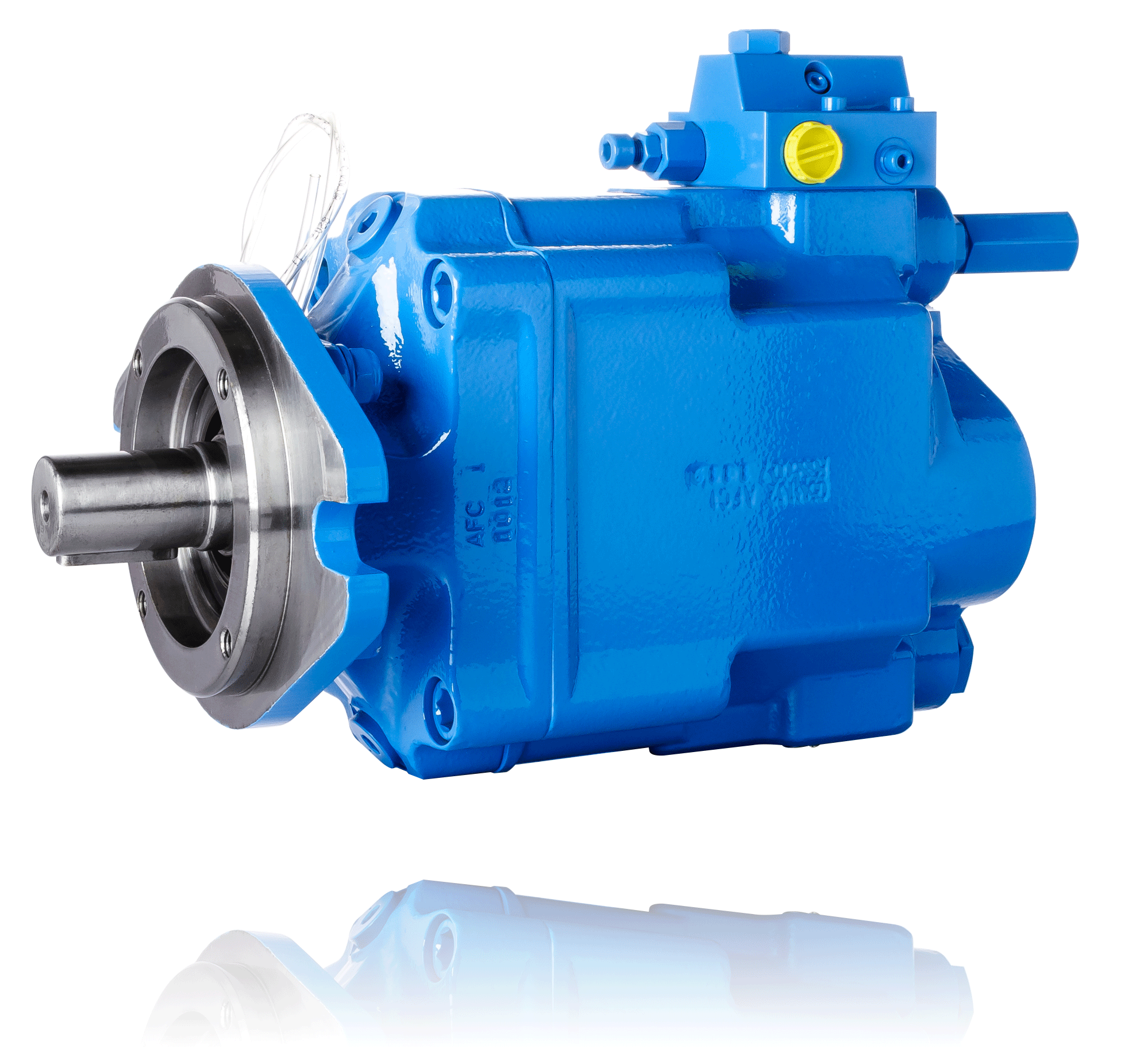

DELTA series pump

Description of the product :

Designed for open loop hydraulic circuits, the DELTA variable displacement pumps allow optimized performance for a given application.

The flow supplied by the pump is automatically regulated according to the control choosen. This guarantees:

• minimized energy consumption,
• minimized heating of fluid,
• reduced noise levels.

Characteristics and advantages :

As standard, the displacements are 40, 60, 75 and 92 cc/rev. DELTA pumps meet the needs of the most demanding users :

• available with splined or keyed drive shaft,
• 2 bolt flange according to SAE C standard,
• long service life,
• no pressure pulsation (11 piston technology),
• low noise level,
• exceptional power mass ratio,
• high discharge pressure (up to 400 bar depending on the model),
• easy start-up due to the good self-priming and suction properties,
• different types of control are possible.

Applications :

• construction equipment,
• industry.
