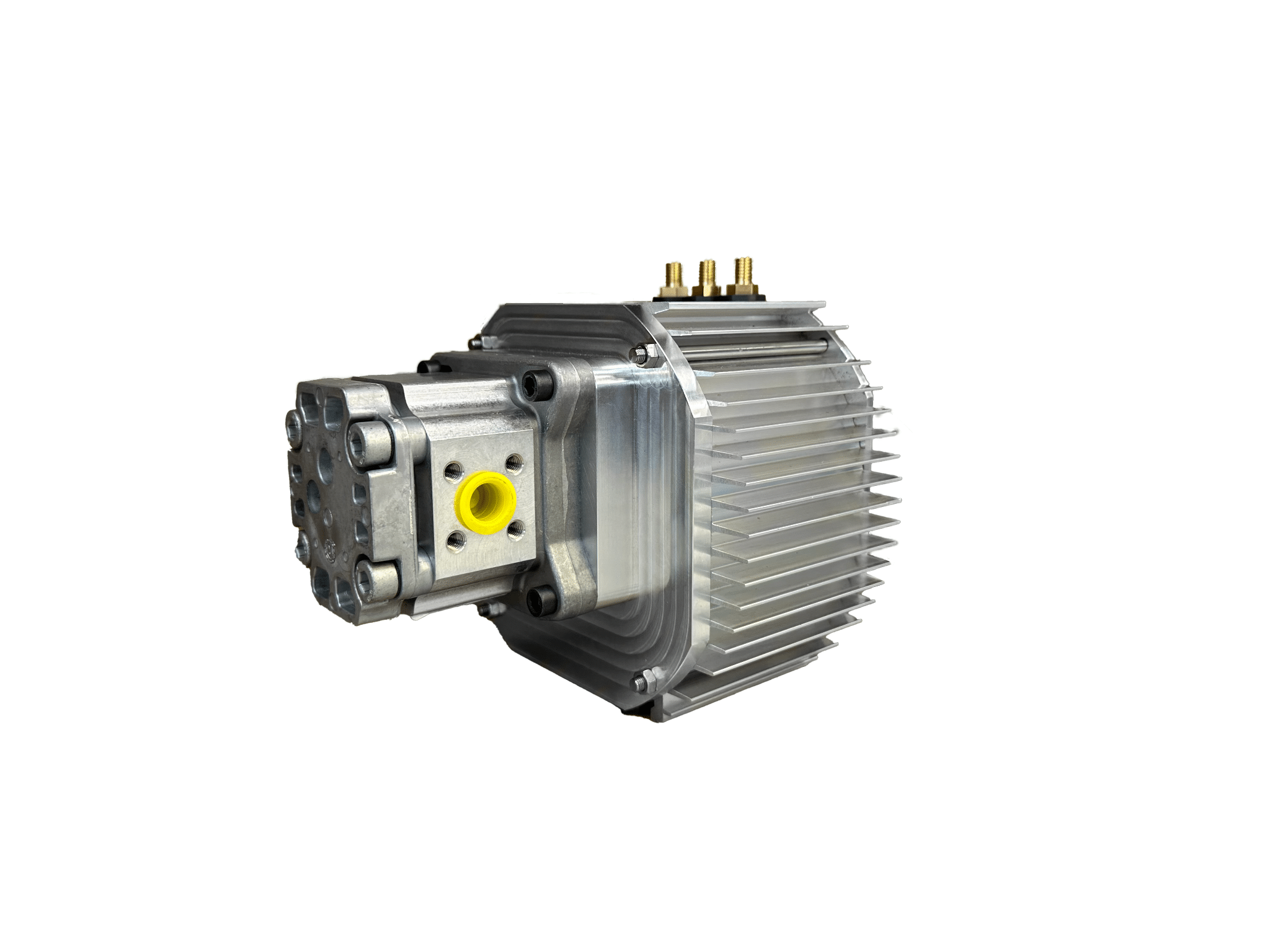

Discover the External EGP, a compact and high‑performance electro‑hydraulic power unit designed to meet the demanding requirements of modern mobile and industrial applications.

The External EGP combines a three‑phase brushless ME175 electric motor, an integrated frequency inverter, and an external gear pump within a highly optimized assembly. This architecture ensures continuous operation, high efficiency, low noise, and quick installation, even in the most demanding environments.

Thanks to its precise hydraulic control, stable power delivery, and multiple available voltage configurations, the External EGP is perfectly suited for electrified systems requiring performance, energy efficiency, and reliability.

Pump side (external gear):

• Available displacements: 0.25/ 0.5 / 0.75/ 1.00 / 2.00 / 3.07 / 4.65 / 6.45 / 8.25 / 10.12 / 12.00 cc/rev
• Maximum flow: up to 34.7 l/min
• Maximum continuous pressure: 240 bar
• Maximum peak pressure: 280 bar
• Rotational speed: up to 7000 rpm depending on model

Motor / inverter side:

• Brushless ME175 motor with advanced control
• Voltages: 24, 48, 96, and 330 Vdc (others on request)
• Maximum current depending on model: 248 to 402 A
• Integrated inverter providing precise motor speed control
