EGP Internal

Product Description:

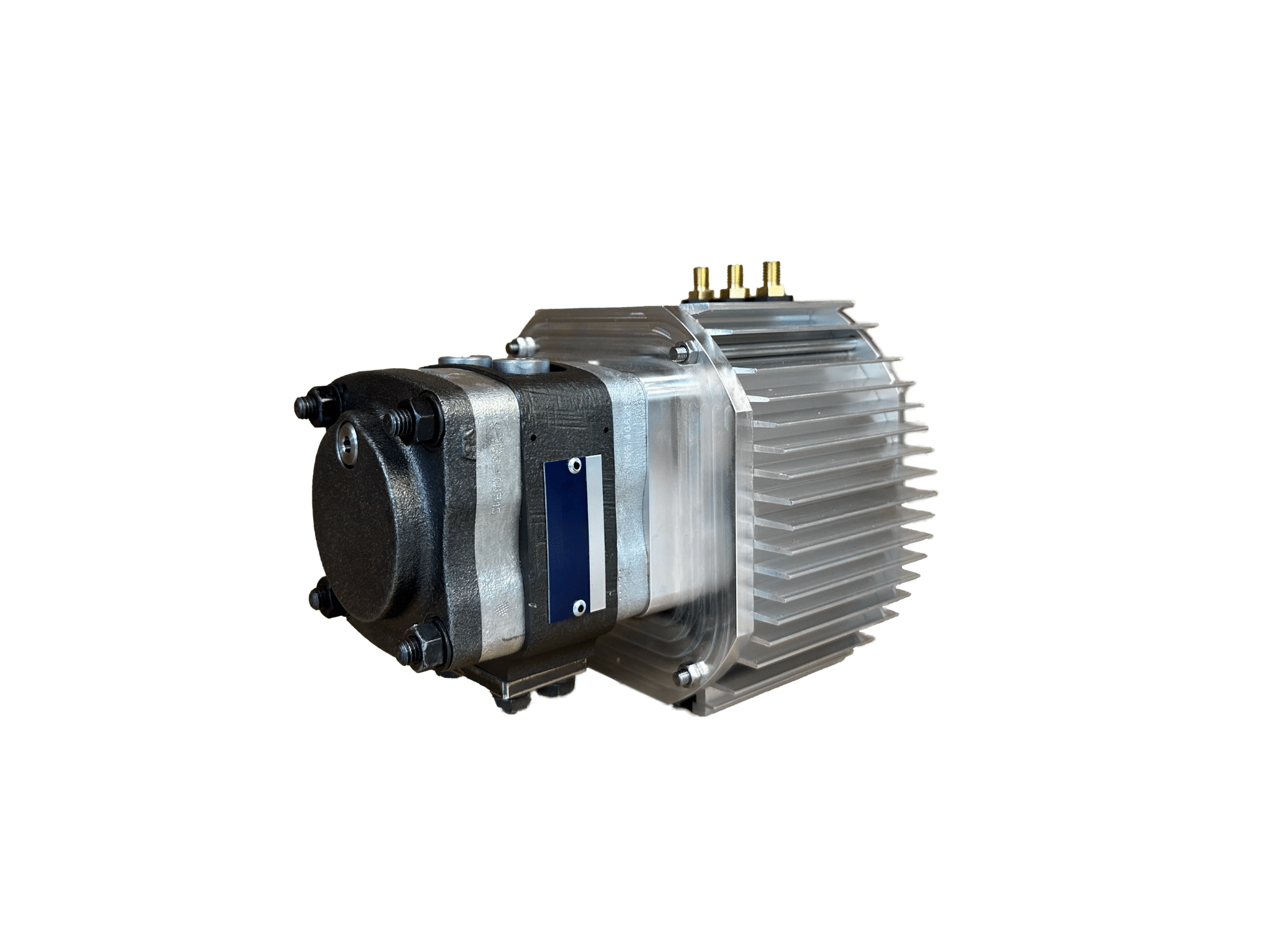

Discover the Internal EGP, a compact and high‑performance electro‑hydraulic power unit designed to deliver a quiet, efficient solution perfectly suited to demanding mobile and industrial environments.

Combining a three‑phase brushless ME175 electric motor with an internal gear pump, the Internal EGP ensures excellent overall efficiency, low noise levels, and high robustness. Its modular design and reduced footprint allow quick and optimized integration into a wide range of hydraulic applications.

With its high‑efficiency motor, continuous‑duty construction, and stable hydraulic characteristics, the Internal EGP is an ideal solution for electrified systems requiring power, compactness, and reliability.

Features and Benefits:

Motorization: Three‑phase brushless ME175 motor for high and durable performance
Pump: Internal gear pump for quiet operation and optimized efficiency
Compact and modular construction facilitating easy integration into machines
Excellent balance between flow, pressure, and energy consumption
Suitable for mobile and industrial hydraulic applications
Designed to ensure maximum robustness in demanding environments

Technical data

Pump side (internal gear):

Available displacements: 3.6 / 5.2 / 6.4 / 8.2 / 10.2 cc/rev
Maximum continuous pressure: 330 bar
Peak pressure: 345 bar
Maximum flow: up to 36 l/min depending on the version
Speed: 3600 rpm
Minimum rotational speed: 400 rpm
Maximum rotational speed: 3600 rpm

Motor side:

Available voltages: 24 Vdc / 48 Vdc / 96 Vdc / others on request
Maximum current: 230 to 453 A depending on configuration

Applications:

Commercial vehicles: utility vehicles, mobile service vehicles
Mobile hydraulics: truck‑mounted cranes, articulated arms, electric PTOs (ePTO), defense sector
Industrial equipment: compact hydraulic power units, test benches, automated machinery
