HYDRO LEDUC proposes a wide range of inlet fittings for fixed displacement pumps.

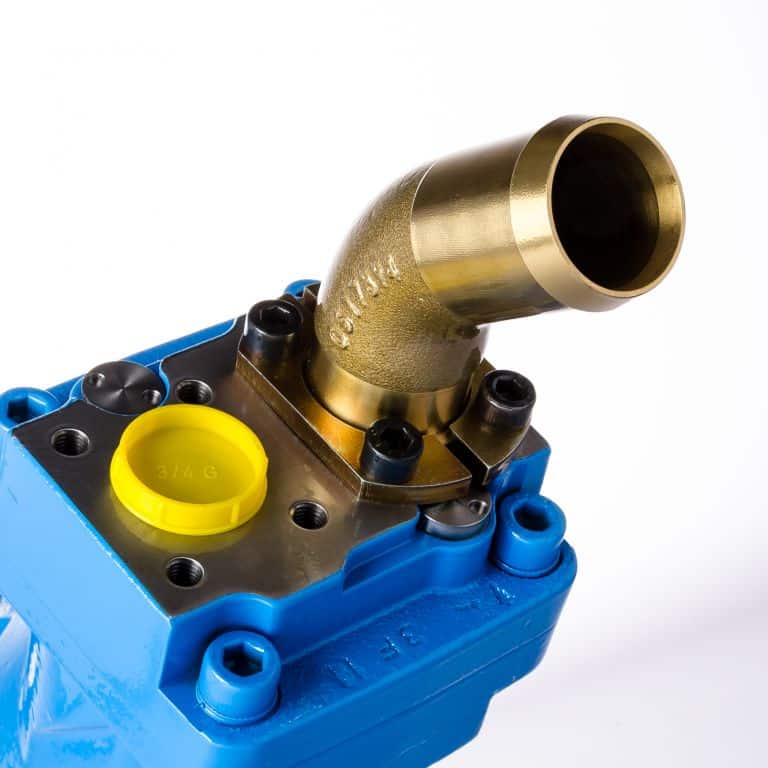

Inlet fitting for XPi – XAi pumps (inlet fitting supplied with the pump on XPi and XAi series, please specify the desired type of connection when ordering):
| TYPE | REFERENCE | Ø HOSE |
| 45° elbow fittings kit | 0519370 | G 1-1/2″ |
| 0519373 | 42 | |
| 0519374 | G 1-3/4″ | |
| 0519371 | G 2″ | |
| 0519372 | G 2-1/2″ | |
| 90° elbow fittings kit | 0521740 | G 1-1/2″ |
| 0521741 | G 2″ | |
| 0521742 | G 2-1/2″ |
Dimensions in mm.
Inlet fitting for PA-PAC-PAD pumps :
| TYPE | REFERENCE | Ø HOSE |
| 90° elbow fittings, swivel | 240131 | 40 |
| 240133 | 50 | |
| 240135 | 50 | |
| Straight fittings | 240182 | 40 |
| 240067 | 50 | |
| 240066 | 60 | |
| 240186 | 63,5 | |
| 240183 | 50 | |
| 240170 | 60 | |
| 240201 | 76,2 |
Dimensions in mm.
