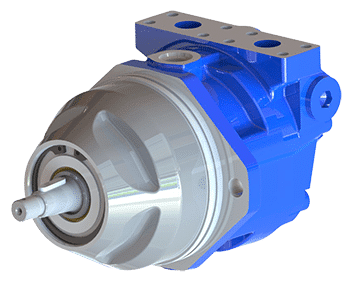

MT45 series motor

Description of the product :

The MT45 is an in-line piston motor.

Its « semi-integrated » design makes it very compact.

Equipped with a conical keyed shaft, it is optimal for mounting on fan drive.

On request, the MT45 motor can be fitted with an anti-cavitation valve, and with an integrated pressure relief valves, thus further reducing size envelope of the function.

Characteristics and advantages :

• displacement of 45.1 cc/rev,
• maximum continuous speed of 4000 rpm,
• continuous maximum pressure of 280 bar, and 300 bar peak,
• dual direction of rotation,
• available options : anti-cavitation valve + integrated pressure limiter (different settings on request),
• semi-integrated – ISO.

Applications  :

• fan drive,
• construction machinery and equipment,
• agricultural machinery.
