Product description:

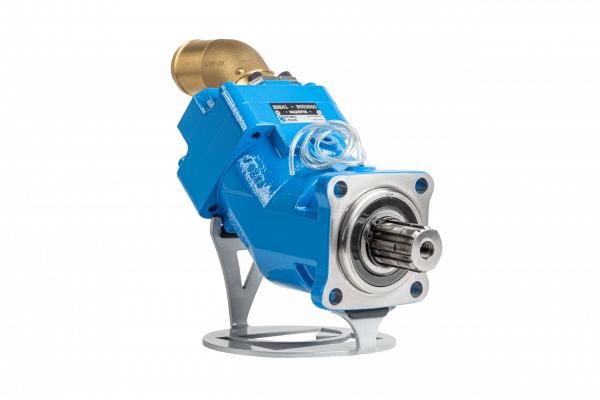

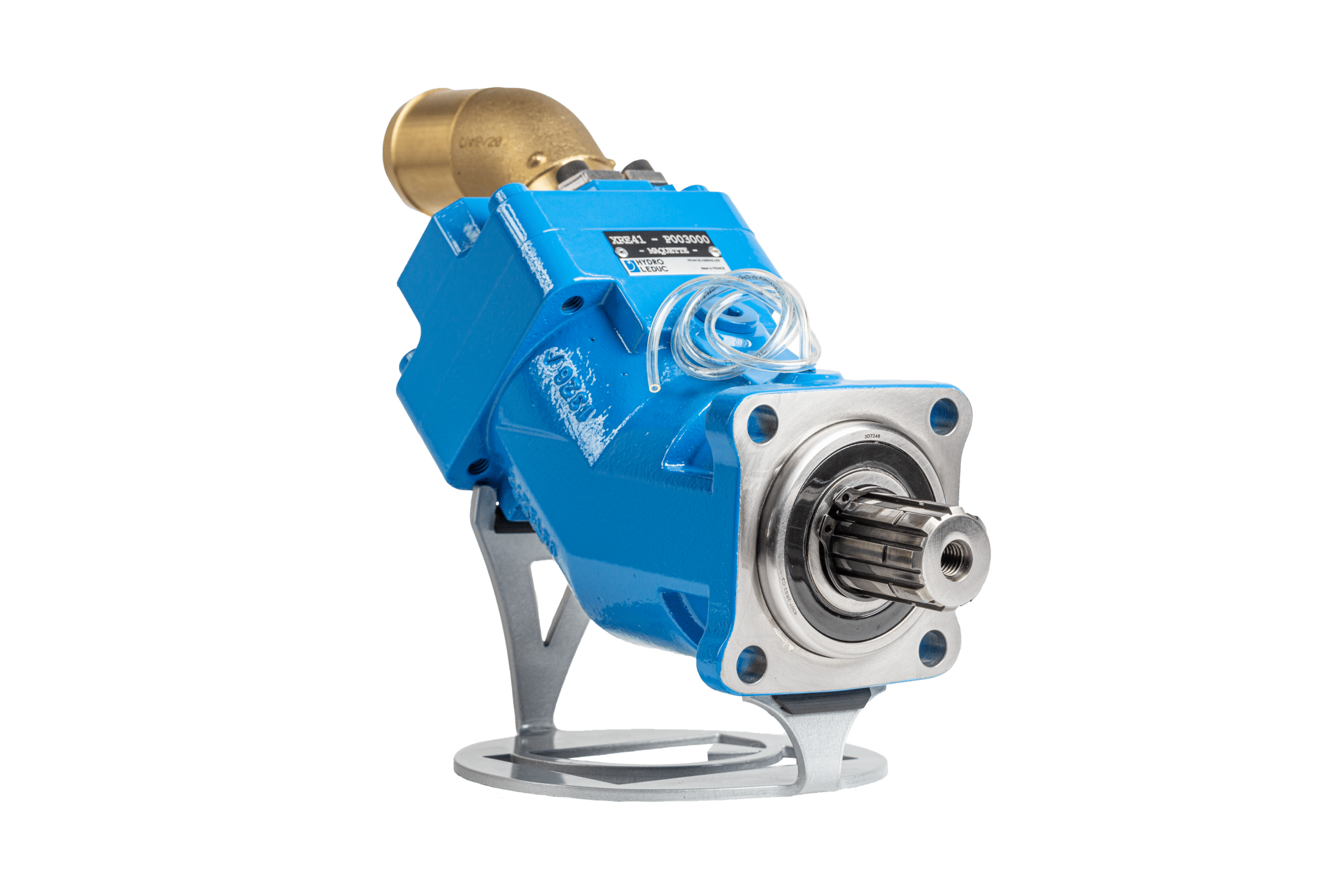

Our new XRe series of fixed displacement spherical piston pumps is quiet and efficient, and specifically designed for mounting on an electric power take-off (e-PTO). Its 9-piston design and innovative distribution reduce flow and pressure pulsations, as well as noise levels. The inlet fitting is provided with the pump.

Discover the XRE41 in our video.

Features and benefits:

• Models from 41 to 63 cm³/rev,
• Mounting flange according to DIN ISO14 (DIN 5462) + ISO 7653,
• Compact design,
• Maximum self-priming speed of 2800 rpm,
• High overall efficiency,
• Innovative distribution for enhanced performance,
• Use of materials with high mechanical strength,
• Original synchronization between swashplate and cylinder block,
• Specifically designed for mounting on an electric power take-off (e-PTO).
• Currently available in SH version only.

Applications:

• Truck equipment (e.g., truck-mounted cranes, forestry cranes, booms, multi-bucket systems, stabilization cylinders),
• Winter equipment (e.g., salt spreaders, snow plows, turbines),
• Fire trucks,
• Military.
