Description of the product :

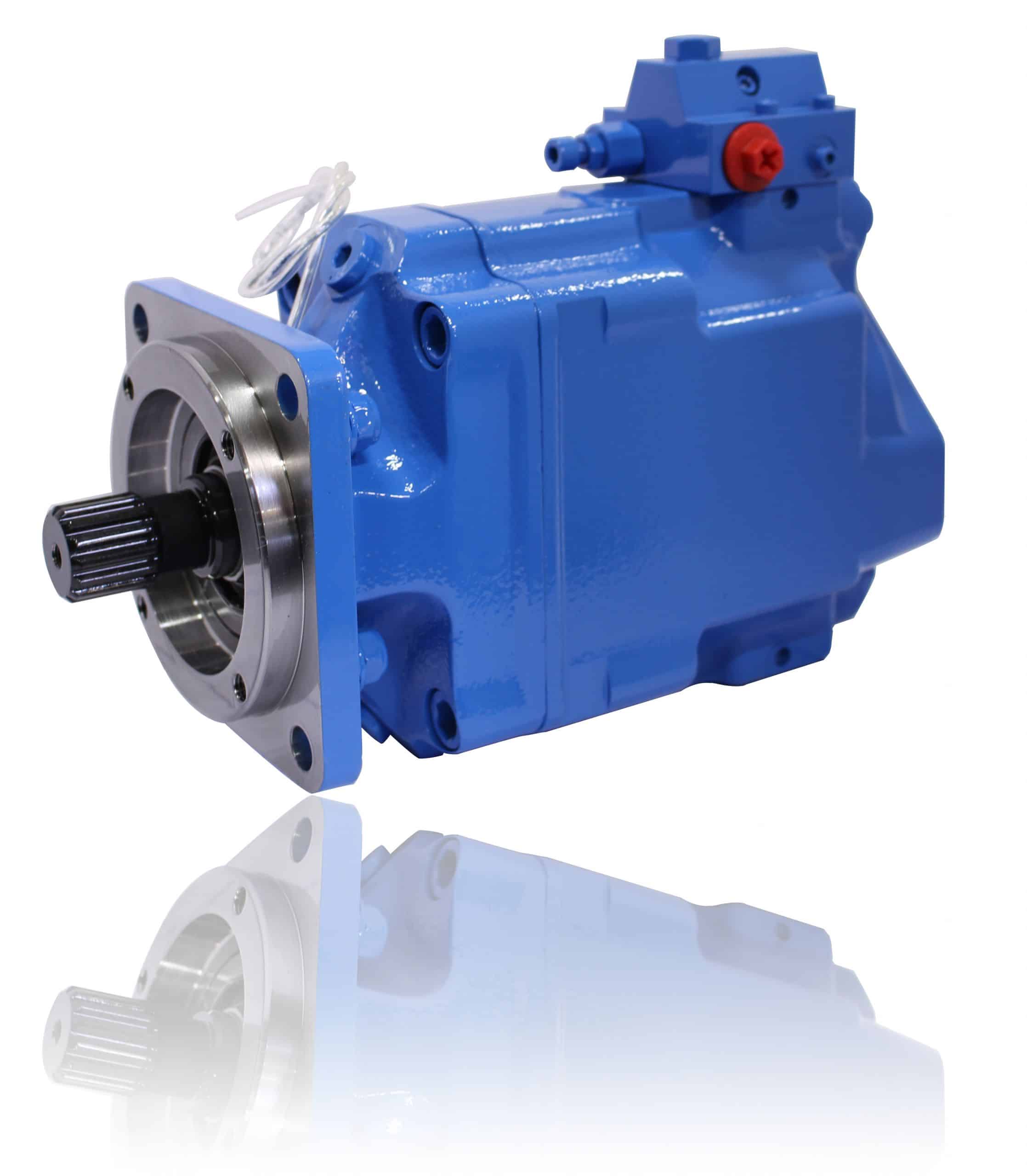

Of similar design to the TXV series pump, with SAE C flange and shaft, the TXVA series pumps are available in 2 models with a maximum displacement of 75 and 92 cc/rev. Maximum operating pressure is up to 400 bar.

Caracteristics and advantages :

• flange according to SAE C (2 bolts, or 4 bolts) – US version,
• UNF ports,
• models of 75 and 92 cc/rev.
• max. operating pressure 400 bar (420 bar peak),
• max. displacement at full displacement of 1900 to 2000 rpm depending on the model,
• fitted with “load sensing” regulation for flow adaptation in the pump,
• can be mounted directly on the engine PTO or on the vehicle gearbox PTO,
• drive shaft in splined or keyed version.

Applications :

• truck equipment (handling cranes, forestry cranes, refuse trucks, spreaders and snow removal vehicles, and other public works equipment),
• military,
• agricultural machinery.
