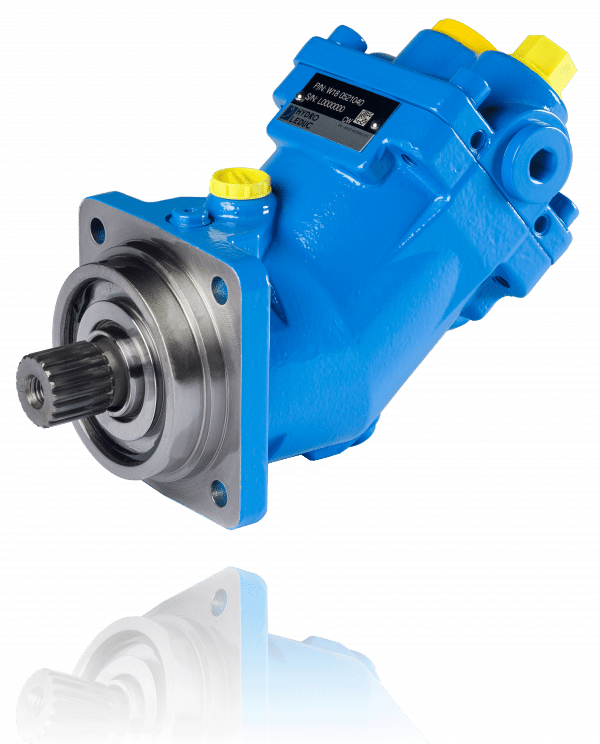

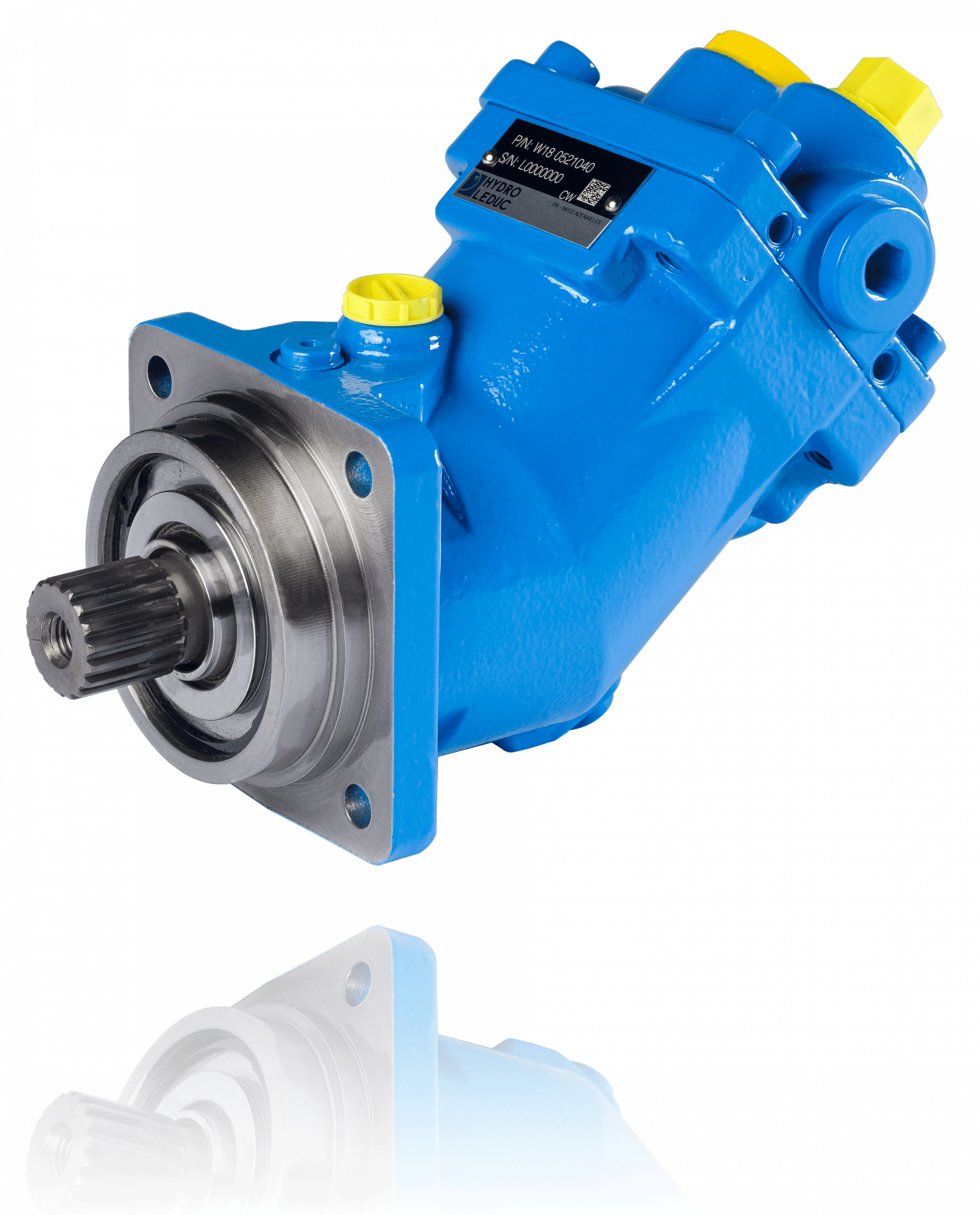

W-WA series pump

Description of the product :

The W/WA pumps have been developed to meet the needs of both the industrial and the mobile hydraulic market.
The W series (ISO version) is available in displacements from 5 to 180 cc/rev.
The WA series (SAE version) is available in displacements from 12 to 180 cc/rev.

Characteristics and advantages :

• high efficiency,
• high speed (from 150 to up to 3000 rpm depending on the model),
• max. pressure up to 400 bar continuous (450 bar peak) while maintaining a high global efficiency and low noise level,
• self-priming and self-suction,
• FKM seals as standard (NBR as an option),
• 7 piston technology to reduce pulsations,
• available with keyed or splined shaft,
• speed sensor as an option on request.

Applications :

• hydraulic power pack,
• power supply units for machine tools,
• public works equipment,
• drilling equipment,
• hydromechanically controlled machines etc…

For the dimensions or for the type of shaft (keyed or splined) please consult the W pump catalogue.
