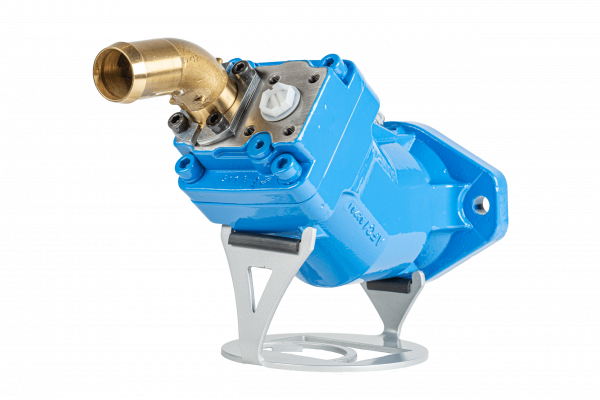

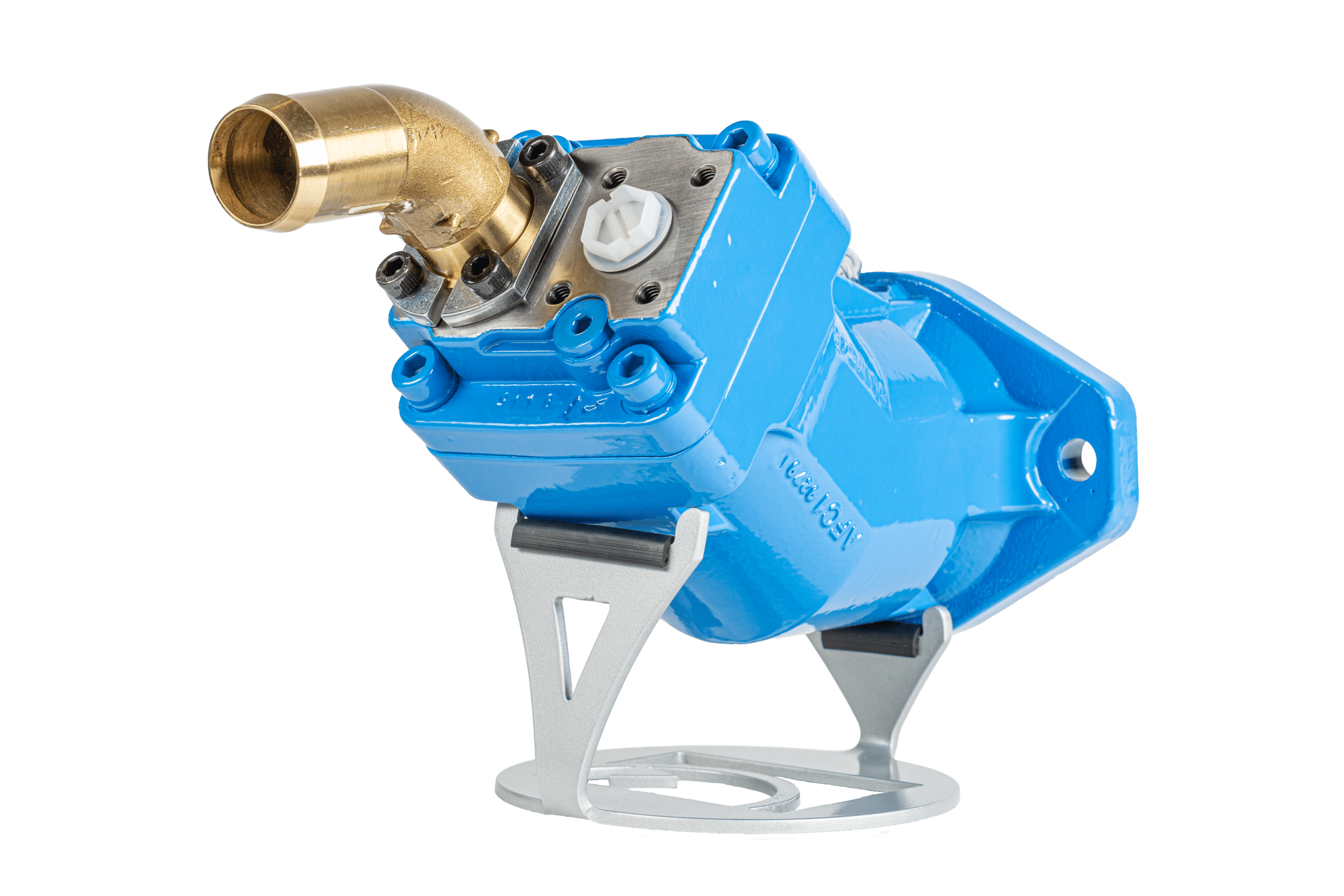

XAi series pump (SAE version)

Description of the product :

Of the same design as the XPi pumps, the XAi fixed displacement pumps are with SAE flange and shaft and are available in displacements from 18 to 63 cc/rev.

Characteristics and advantages :

• flange according to SAE B (2 bolts, or 4 bolts) –US version,
• models from 18 to 63 cc/rev.
• operating pressure 380 bar continuous and 420 bar peak,
• max. speed of 2300 to 2650 rpm,
• 7 pistons,
• compactness allowing installation in environments where space is very limited (PTO),
• automatic setting of pump direction of rotation (pump can be used CW or CCW),
• easier installation and start-up,
• suitable for engine PTO (with by-pass valve).

Applications :

• truck equipment (examples : truck cranes, forestry cranes, hook lift, skip loader, stabilization cylinders),
• snow and ice equipment (examples: spreaders, snow blades, turbines),
• fire trucks,
• military.
