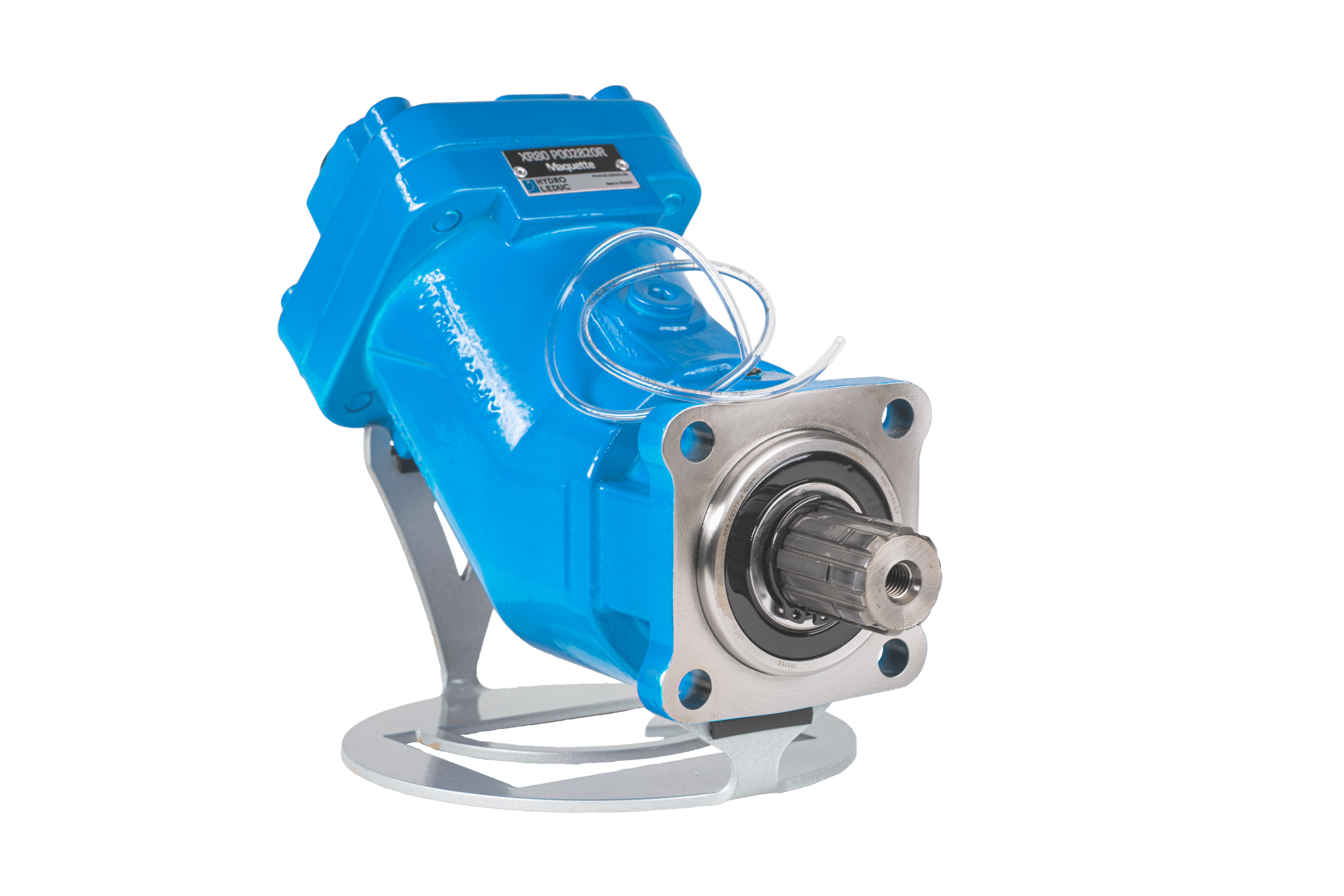

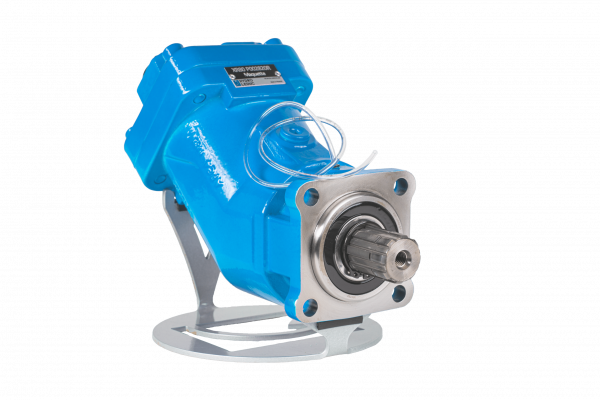

XR series pump

Product description:

Our new XR series of spherical piston pumps features a redesigned distribution section, allowing it to achieve the highest self-priming speeds on the market, with high overall efficiency. They are specially designed to meet the increasingly demanding needs of truck equipment.

All models are built with 7 pistons to ensure optimal flow consistency. These fixed displacement pumps can handle continuous working pressures up to 400 bar and peak pressures up to 450 bar.

The inlet fitting is provided with the pump.

Features and benefits:

• Mounting flange according to DIN ISO14 (DIN 5462) + ISO 7653,
• Models from 63 to 130 cm³/rev,
• 400 bar continuous and 450 bar peak,
• Highest self-priming speed on the market,
• FKM seals standard for the toughest environments,
• Bi-material head developed in-house,
• Original synchronization between swashplate and cylinder block,
• Compact design,
• Use of materials with high mechanical strength,
• Compatible for use on rear engine take-off (with bypass).

Applications:

• Truck equipment (e.g., truck-mounted cranes, forestry cranes, booms, multi-bucket systems, stabilization cylinders),
• Winter equipment (e.g., salt spreaders, snow plows, turbines),
• Fire trucks,
• Military.
